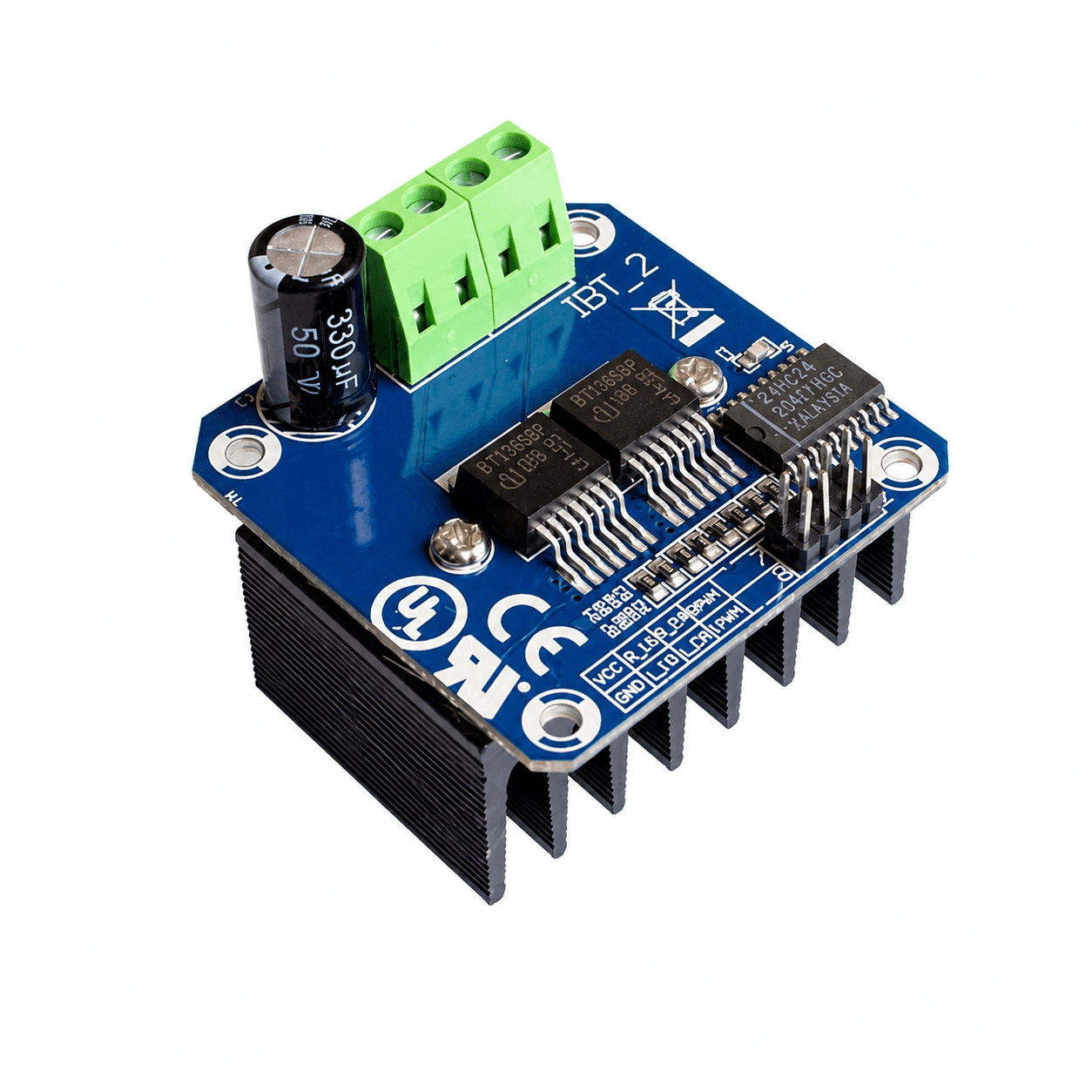

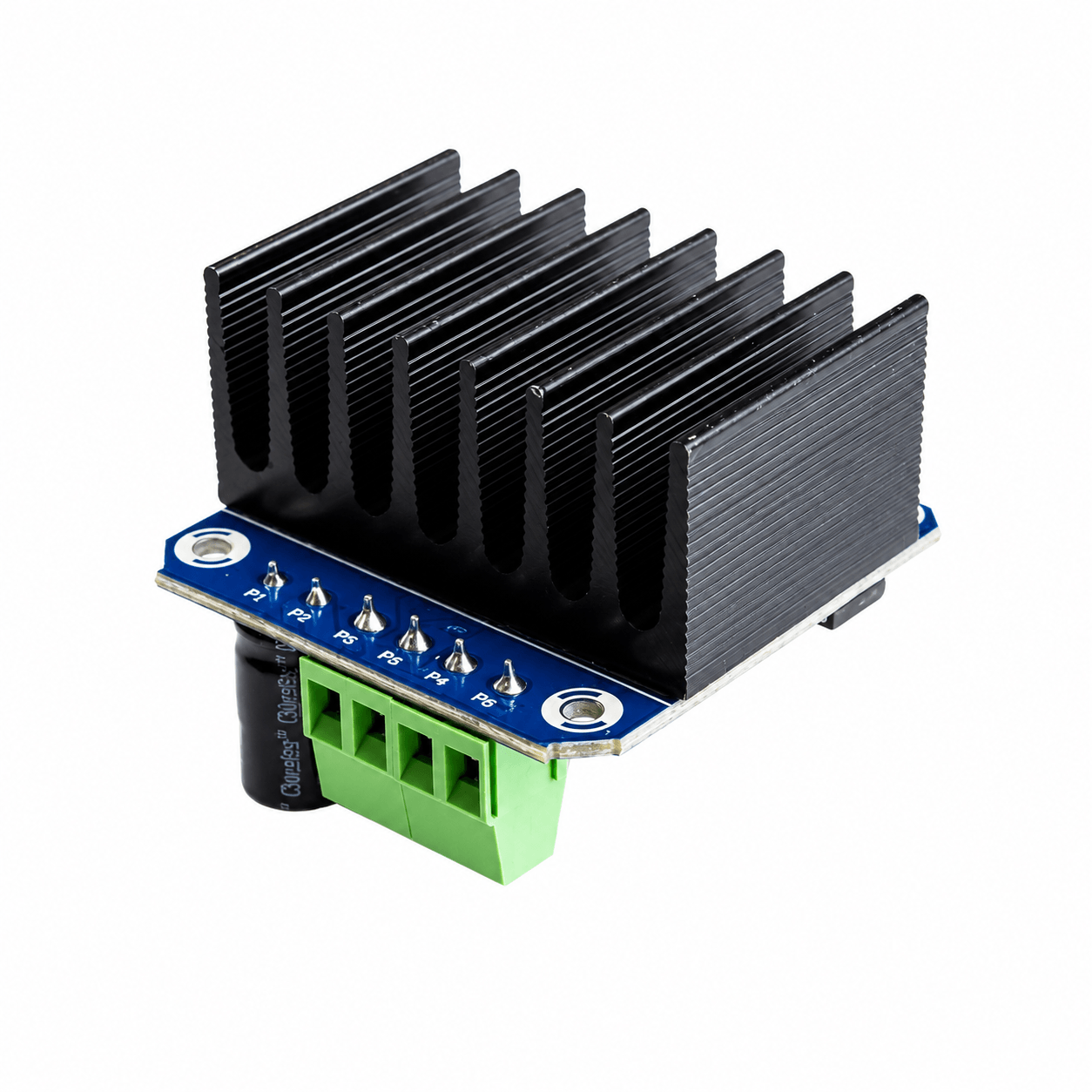

BTS7960 H-Bridge 43A Motor Driver Module

BTS7960 H-Bridge 43A High Power Motor Driver Module

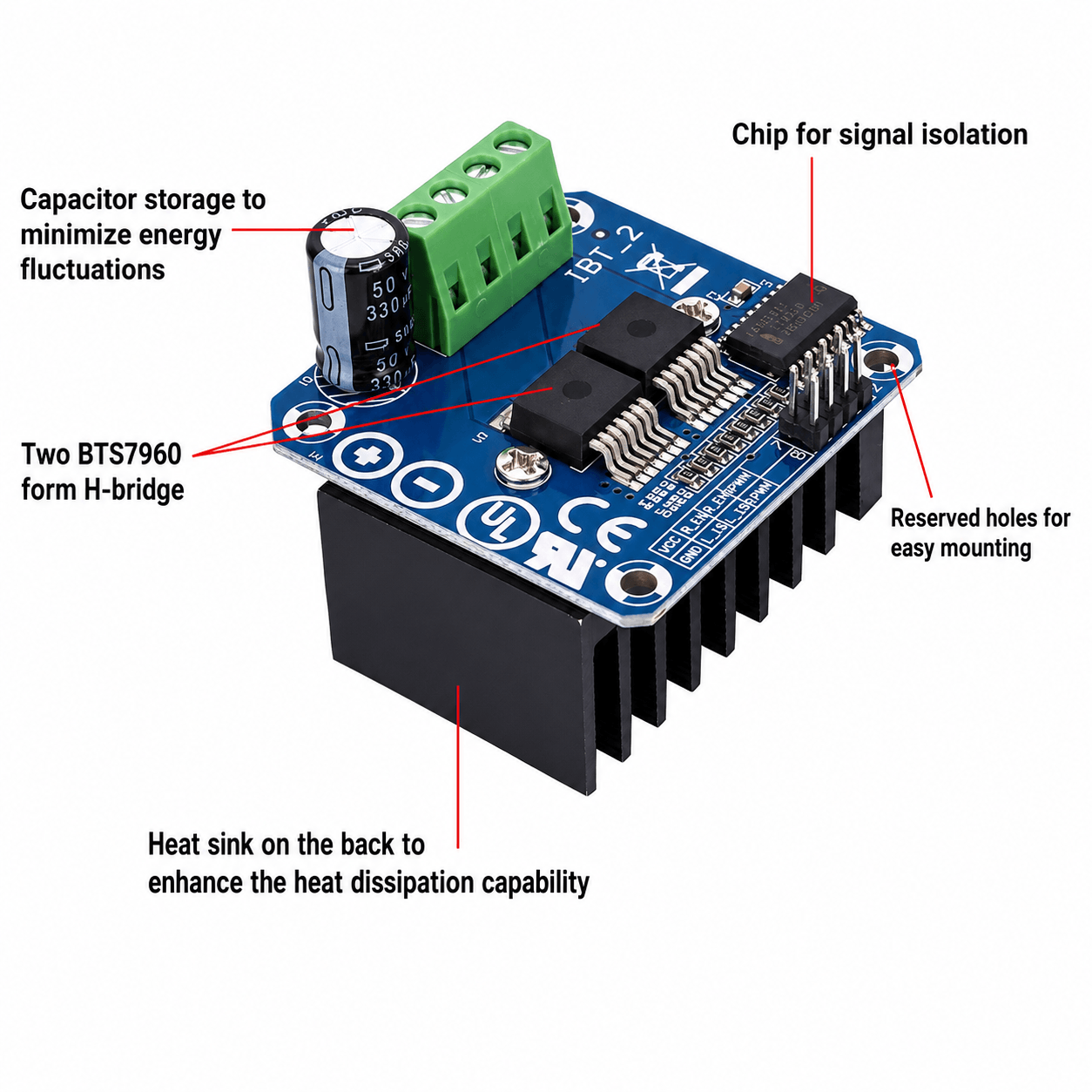

The BTS7960 H-Bridge Motor Driver Module is a high-power DC motor driver designed for robotics, automation, electric vehicles, and industrial applications. It supports bidirectional motor control, PWM speed regulation, and features built-in protection against over-current, over-temperature, and under-voltage conditions for reliable operation.

Specifications :

• Model: BTS7960 H-Bridge Motor Driver (IBT-2)
• Driver IC: Dual BTS7960B
• Motor Supply Voltage: 6V – 27V DC
• Logic Voltage: 3.3V – 5V
• Maximum Current: Up to 43A Continuous / High Peak Current
• PWM Frequency: Up to 25kHz

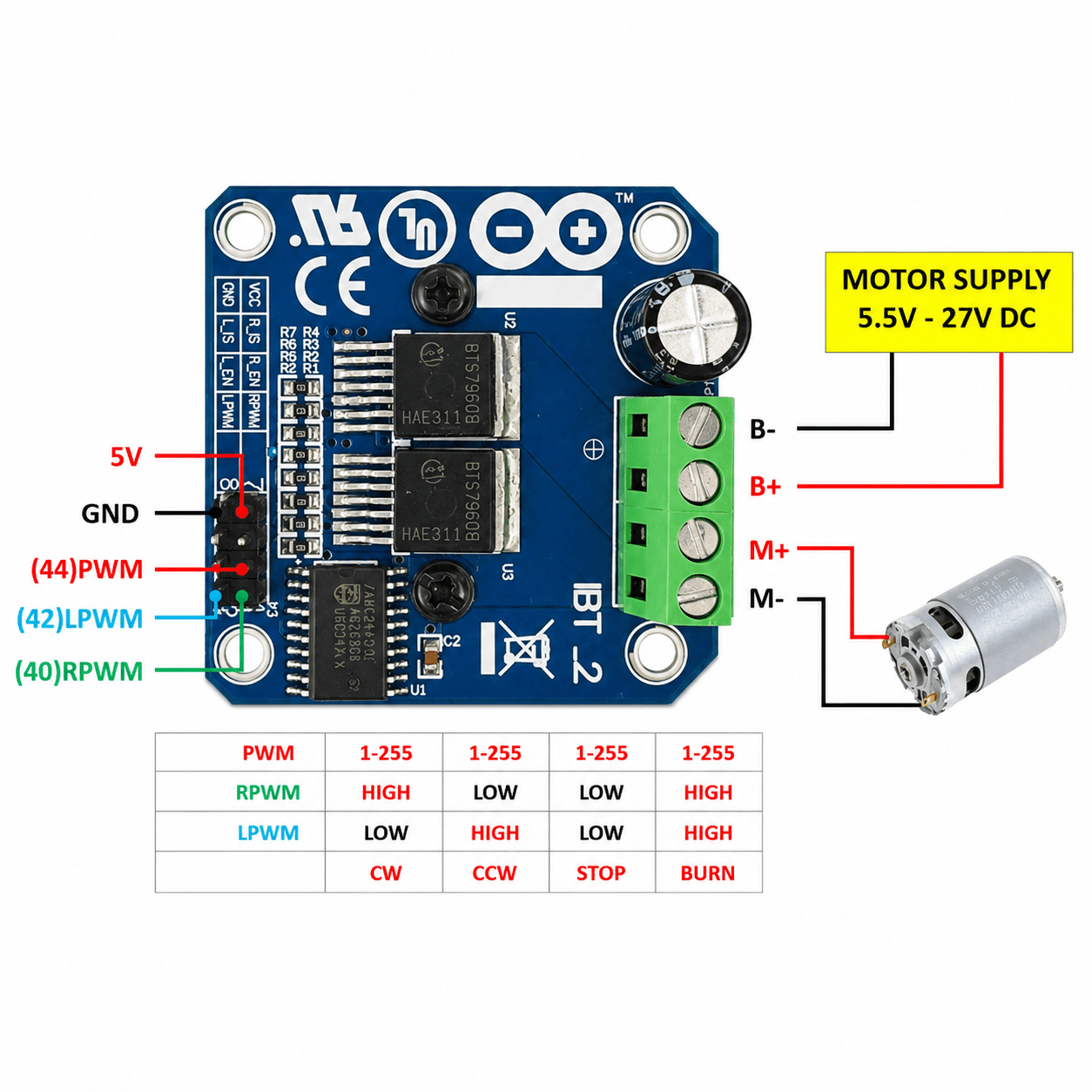

• Control Interface: RPWM, LPWM, R_EN, L_EN
• Control Mode: PWM or Logic Level
• Duty Cycle: 0% – 100%
• Protection Features:
  Over-Current Protection
  Over-Temperature Protection
  Under-Voltage Protection
  Short-Circuit Protection
• Module Dimensions: Approx. 50 × 50 mm
• Suitable For: High-power DC motors, robotics, electric vehicles, automation systems

Package Includes

• 1 × BTS7960 H-Bridge Motor Driver Module
