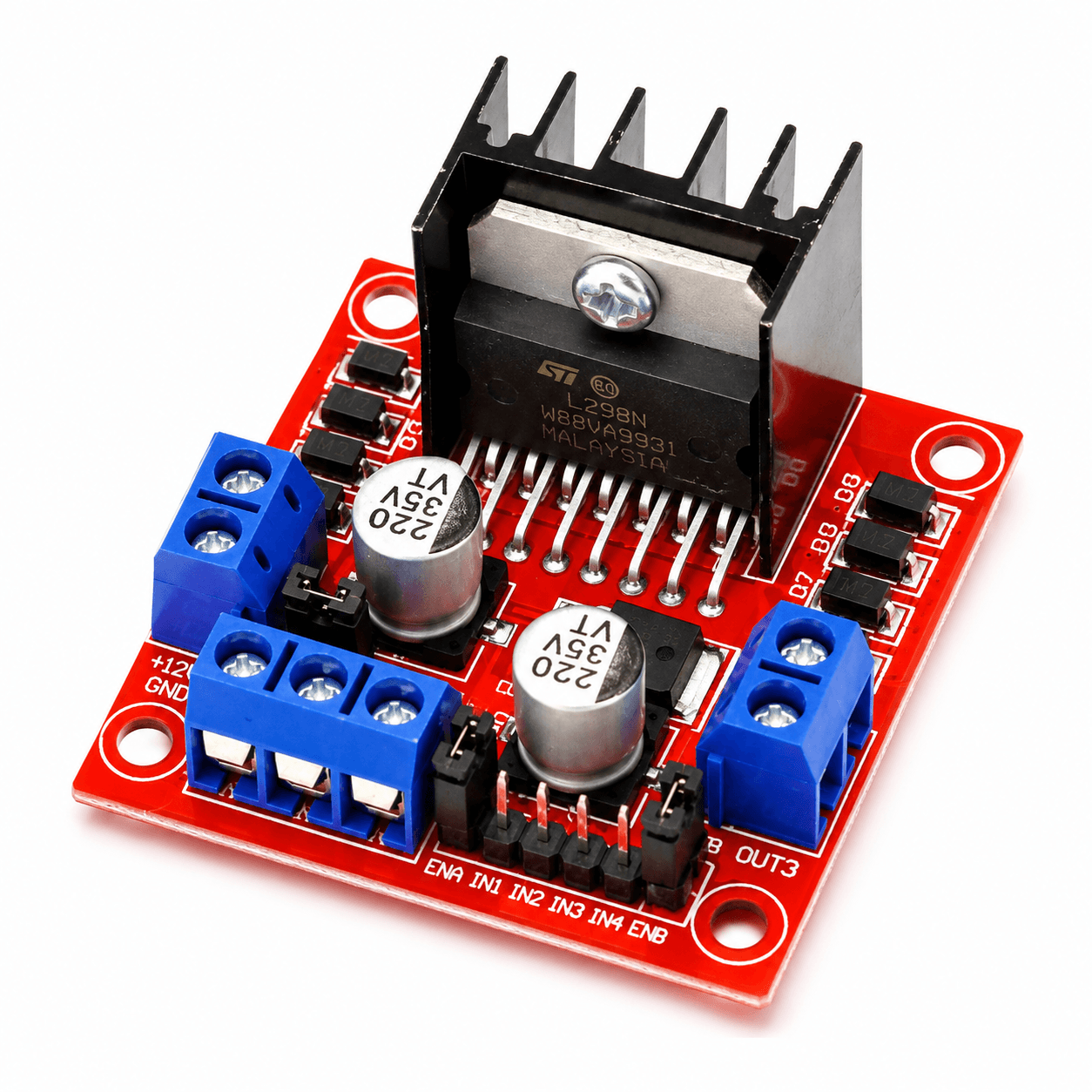

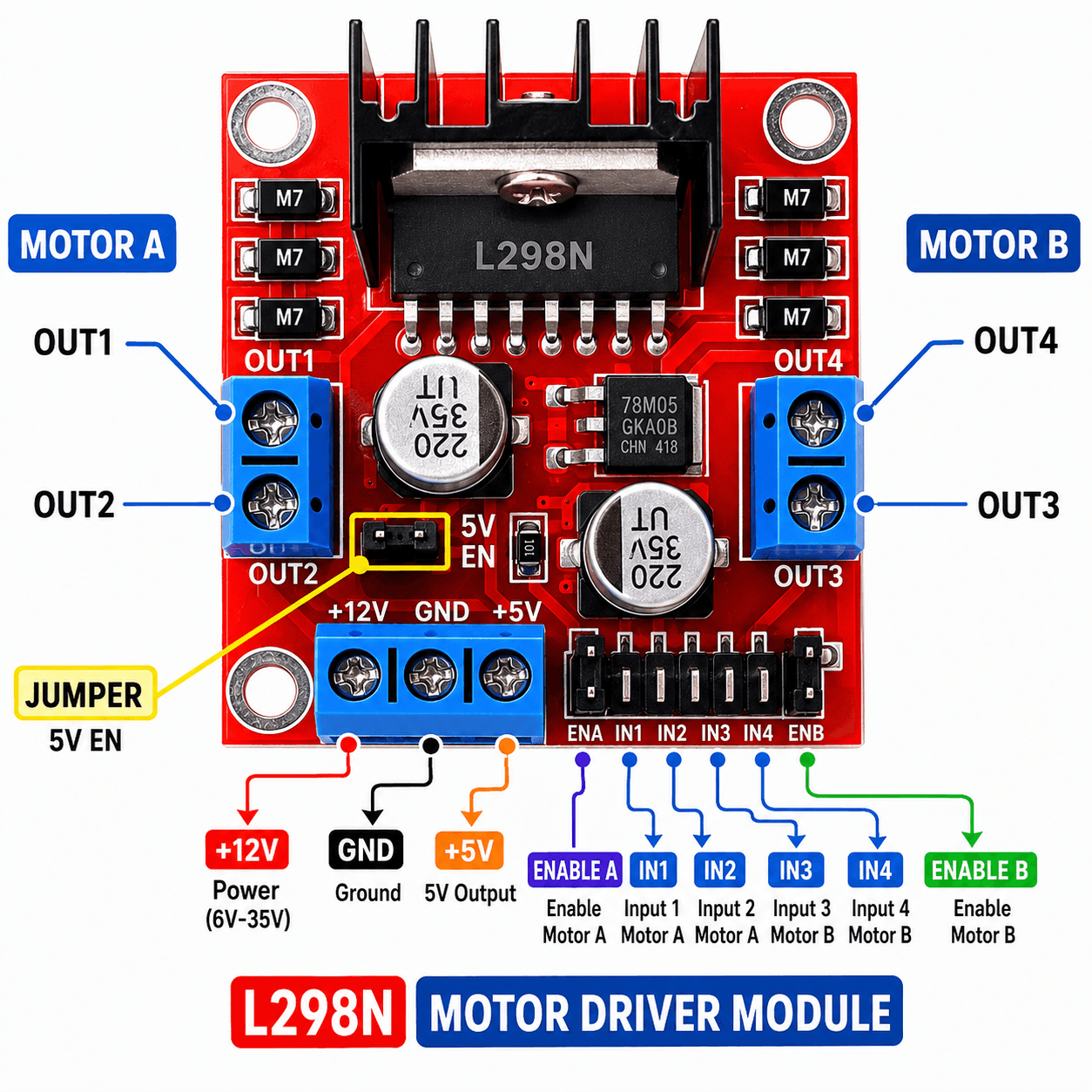

L298N Motor Driver Module

L298N Motor Driver Module

The L298N Motor Driver Module is a powerful dual H-Bridge motor controller designed to drive DC motors and stepper motors with ease. It can independently control the speed and direction of two DC motors using PWM signals, making it ideal for Arduino, ESP32, Raspberry Pi, robotics, smart cars, and automation projects.

Specifications

• Driver IC : L298N
• Operating Voltage : 5V – 35V DC
• Logic Voltage : 5V
• Peak Current : 2A per channel
• Continuous Current : 1A – 1.5A per channel
• Motor Channels : 2 DC Motors
• Control Interface : PWM & Direction Control
• Supported Motors : DC Motors & Stepper Motors
• Onboard 5V Regulator : Yes
• Heatsink : Included
• Board Size : Approx. 43 x 43 x 27 mm

Package Includes

• 1 × L298N Dual H-Bridge Motor Driver Module
• 1 × Aluminum Heatsink (Pre-installed)
• Jumper Caps (Installed)
