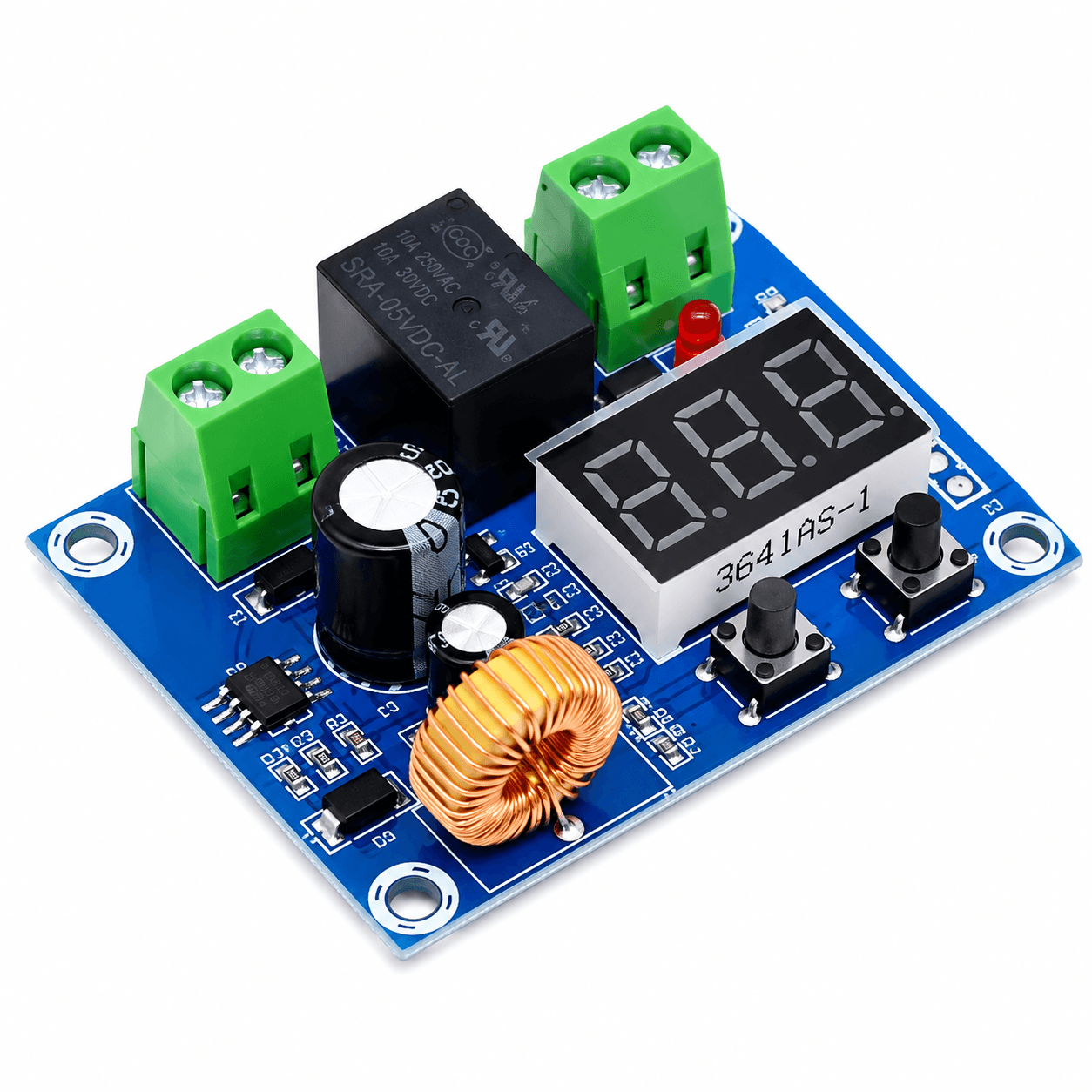

XH-M609 Battery Low Voltage Protection Module

XH-M609 Battery Low Voltage Protection Module

Protect your batteries from deep discharge with the XH-M609 Low Voltage Protection Module. This intelligent battery protection board features a programmable low-voltage cut-off and recovery function, a bright 3-digit LED voltage display, and a high-current relay output. It is ideal for 12V, 24V, and 36V lead-acid or lithium battery systems used in solar power, automotive, UPS, and DIY electronics projects.

Specifications :

• Model: XH-M609
• Product Type: Low Voltage Protection Module
• Input Voltage Range: DC 6V–60V
• Recommended Battery Voltage: 12V–36V
• Output Voltage: Same as input voltage
• Relay Output Current: Up to 10A
• Display: 3-Digit LED Digital Voltage Display
• Voltage Display Accuracy: 0.1V
• Control Accuracy: ±0.1V
• Power Consumption: <1.5W
• Protection Function: Programmable low-voltage cut-off and automatic recovery
• Compatible Batteries: Lead-acid
• Operating Mode: Automatic battery disconnect/reconnect

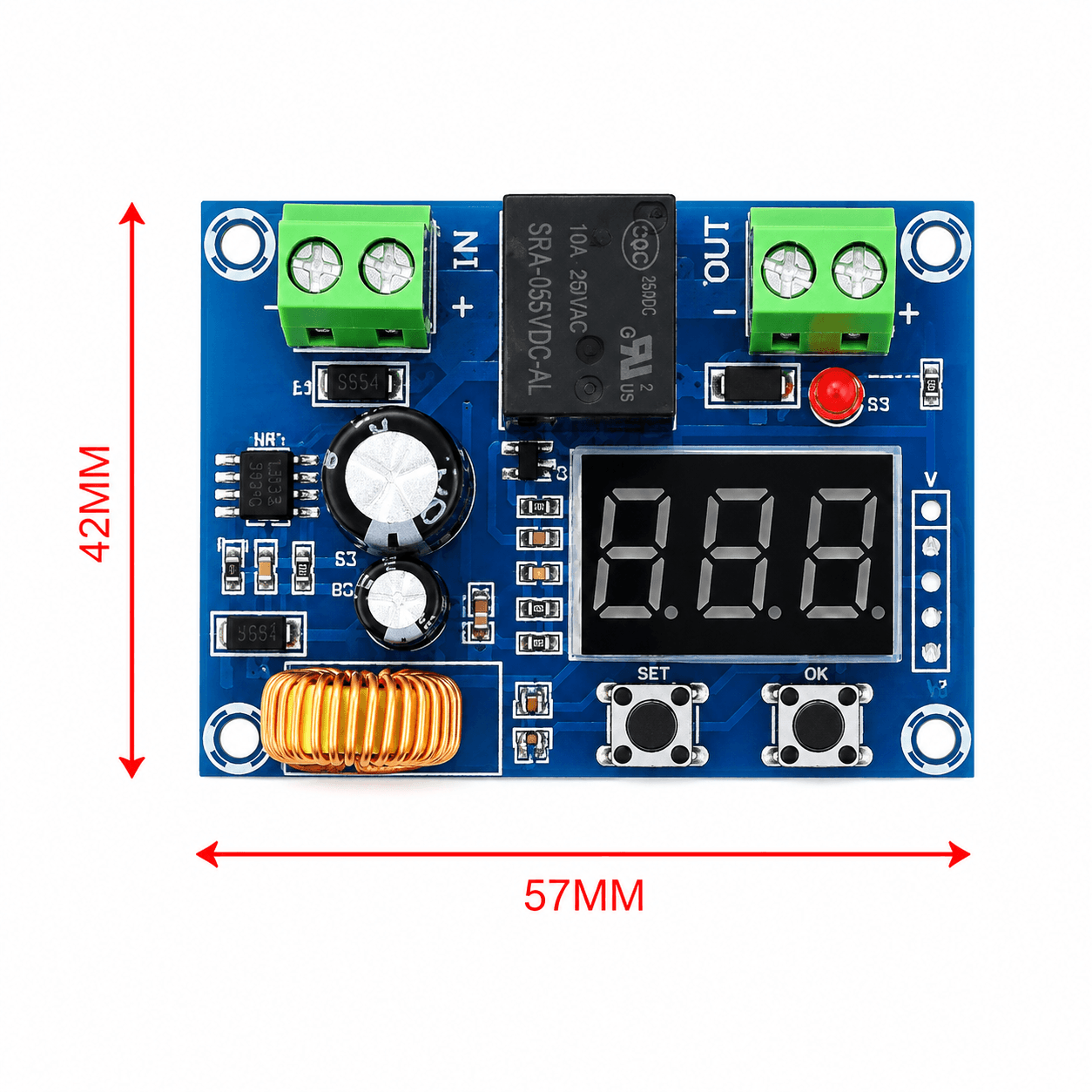

•  Dimensions: 57 × 42 × 19 mm
• Weight: Approximately 28g
• Applications: Solar battery systems, UPS, automotive batteries, inverters, battery backup systems, and DIY electronics projects.

Package Includes

• 1 × XH-M609 Low Voltage Protection Module
