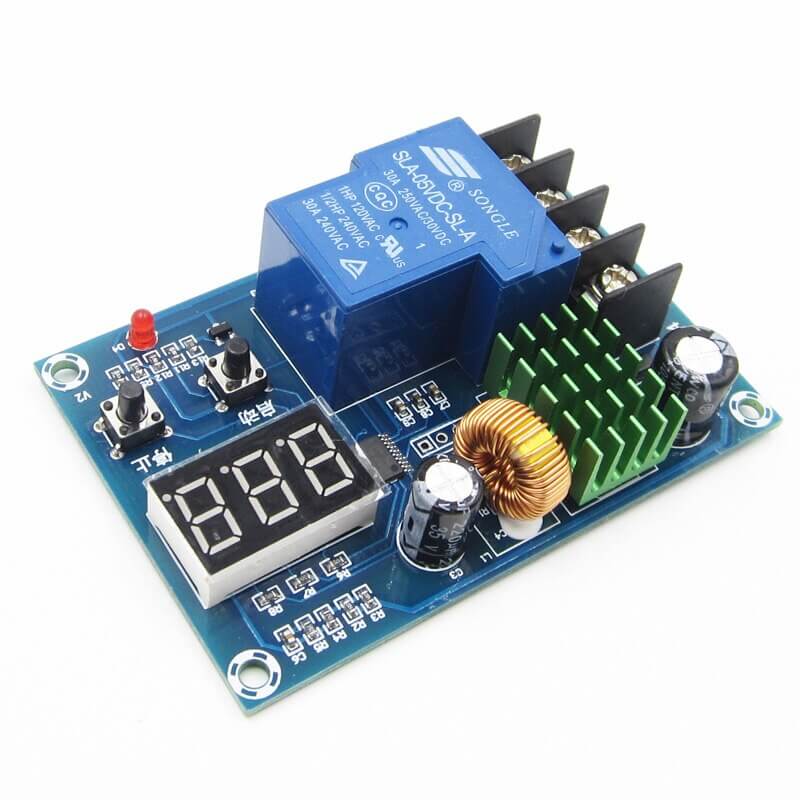

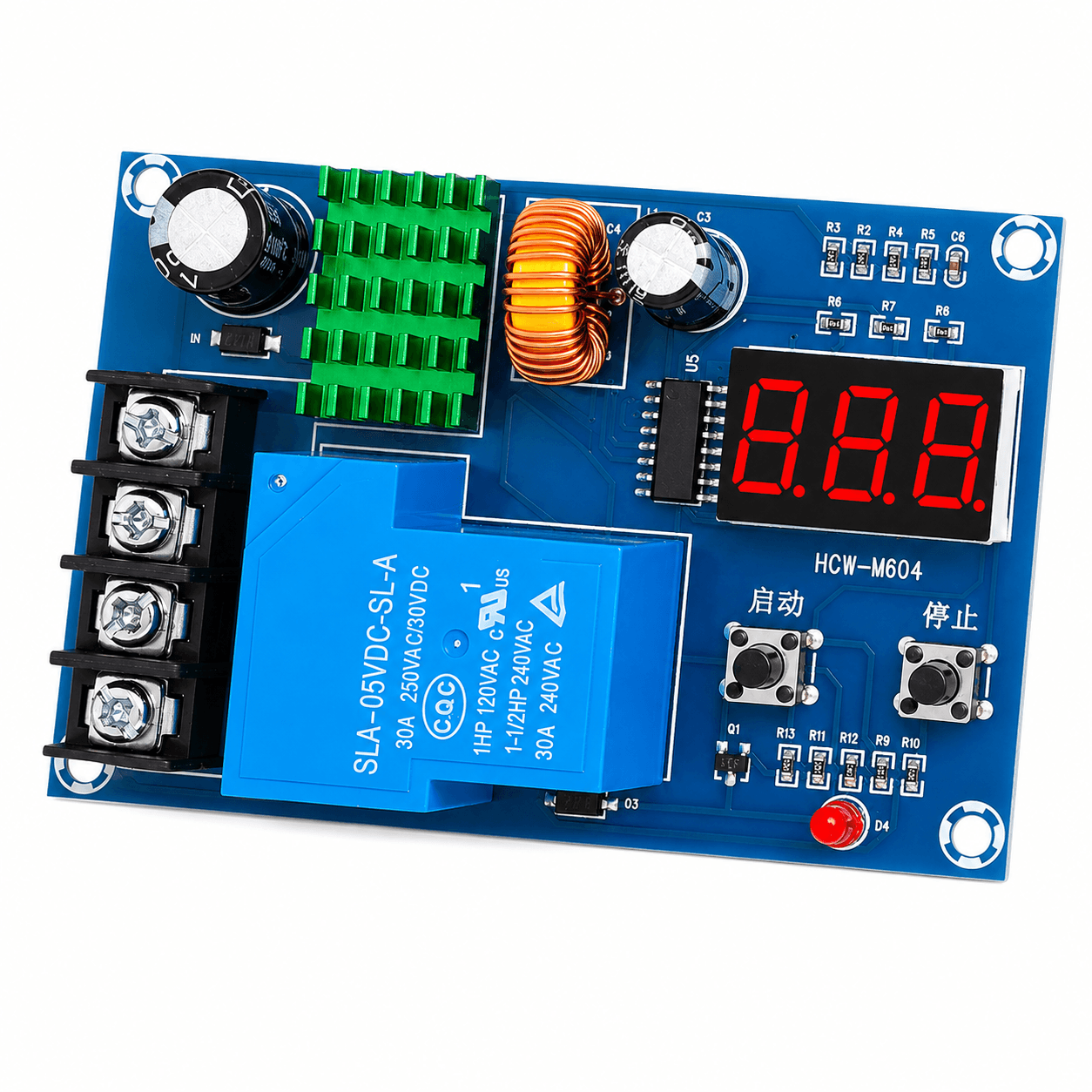

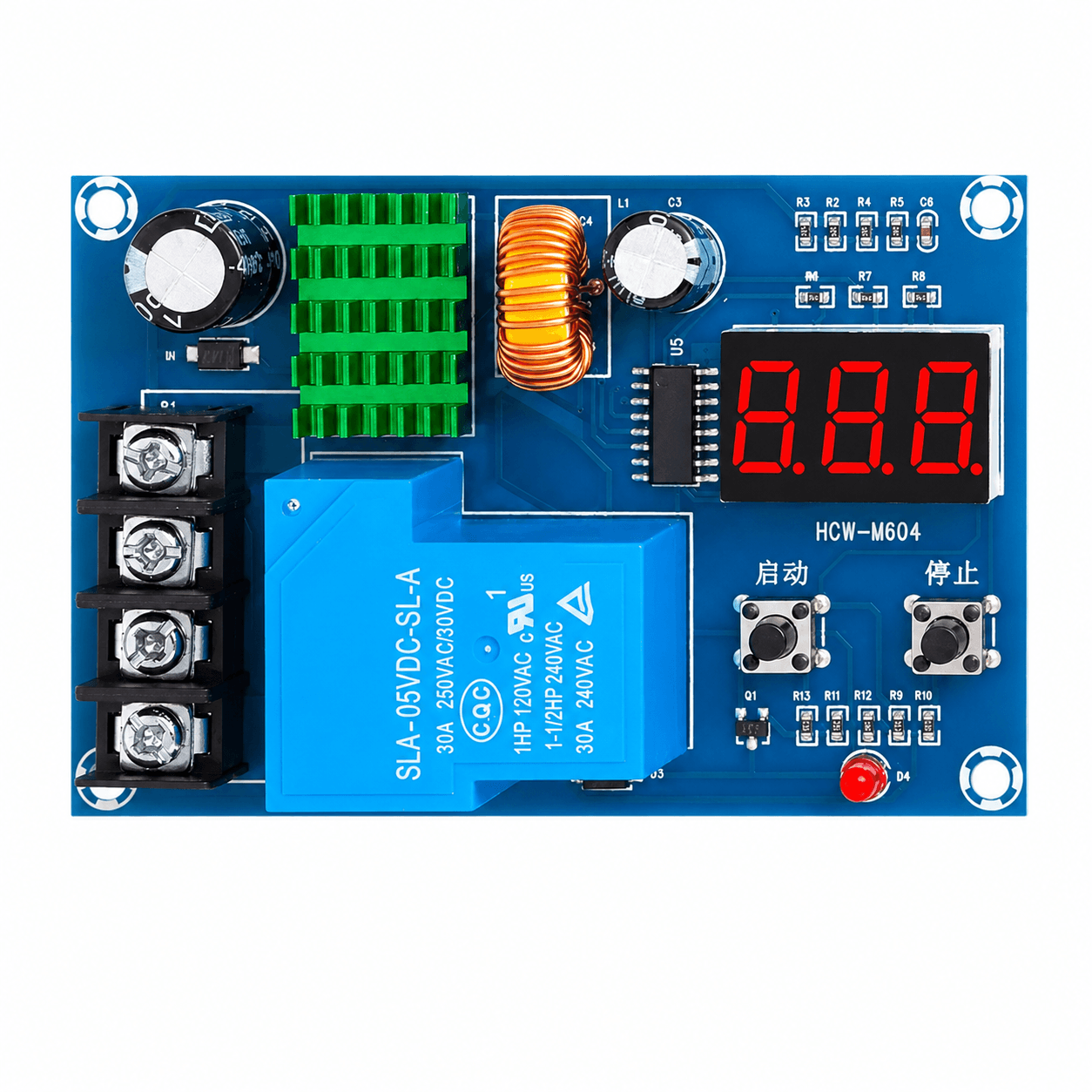

XH-M604 Battery Over Charging Protection Module

XH-M604 Battery Over Charging Protection Module

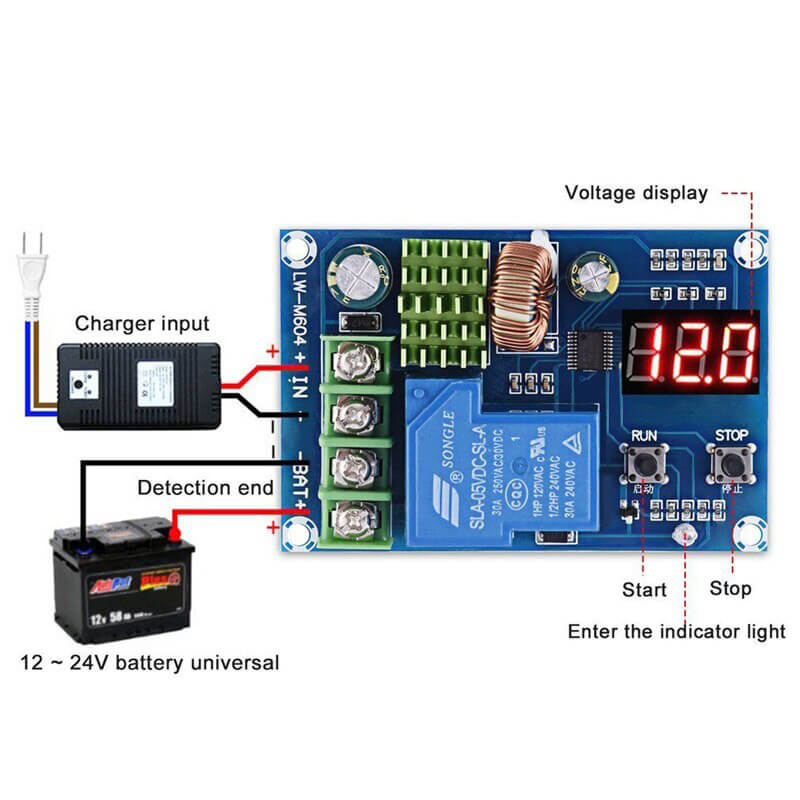

The XH-M604 is a smart battery charging control module designed to prevent overcharging by automatically stopping and restarting charging based on user-defined voltage levels. It features a digital voltage display, adjustable start/stop charging settings, and supports 6V–60V battery systems, making it ideal for lead-acid, lithium, and solar battery applications.

Specifications :

• Model: XH-M604 / HCW-M604
• Input Voltage Range: DC 6V – 60V
• Applicable Battery Voltage: 6V – 60V Batteries
• Display Type: 3-Digit LED Digital Voltage Display
• Display Accuracy: 0.1V
• Control Accuracy: 0.1V
• Voltage Tolerance: ±0.1V
• Output Type: Direct Relay Output
• Relay Rating: 30A High-Power Relay
• Charging Control: Adjustable Start & Stop Charging Voltage
• Protection Function: Automatic Overcharge Protection
• Battery Types: Lithium, Lead-Acid, AGM, Gel Batteries
• Module Dimensions: 81 × 54 × 18 mm
• Mounting Holes: 4 Corner Mounting Holes
• Operating Mode: Automatic Charge Cut-Off & Restart
