ESP32-CAM WiFi Bluetooth Development Board with OV2640 Camera Module

ESP32-CAM WiFi + Bluetooth Development Board with OV2640 Camera Module (ESP32-S, MicroSD Support)

Build smart IoT camera projects with the ESP32-CAM Development Board featuring an ESP32-S WiFi + Bluetooth SoC and OV2640 2MP camera module. With built-in WiFi, Bluetooth, MicroSD card support, and compact design, it’s ideal for wireless surveillance, face recognition, image streaming, smart home automation, robotics, and AI applications.

Specifications :

• Model: ESP32-CAM (ESP32-S / AI-Thinker)
• Main Chip: ESP32-S Dual-Core Xtensa LX6 Processor
• CPU Frequency: Up to 240MHz
• Wireless Connectivity: 2.4GHz WiFi 802.11 b/g/n + Bluetooth 4.2 (BLE)
• Camera Sensor: OV2640 2MP
• Camera Resolution: Up to 1600 × 1200 (UXGA)
• External Storage: MicroSD/TF Card Slot (Up to 4GB recommended)
• Flash Memory: 4MB SPI Flash
• PSRAM: 4MB
• Operating Voltage: 5V DC
• Logic Voltage: 3.3V

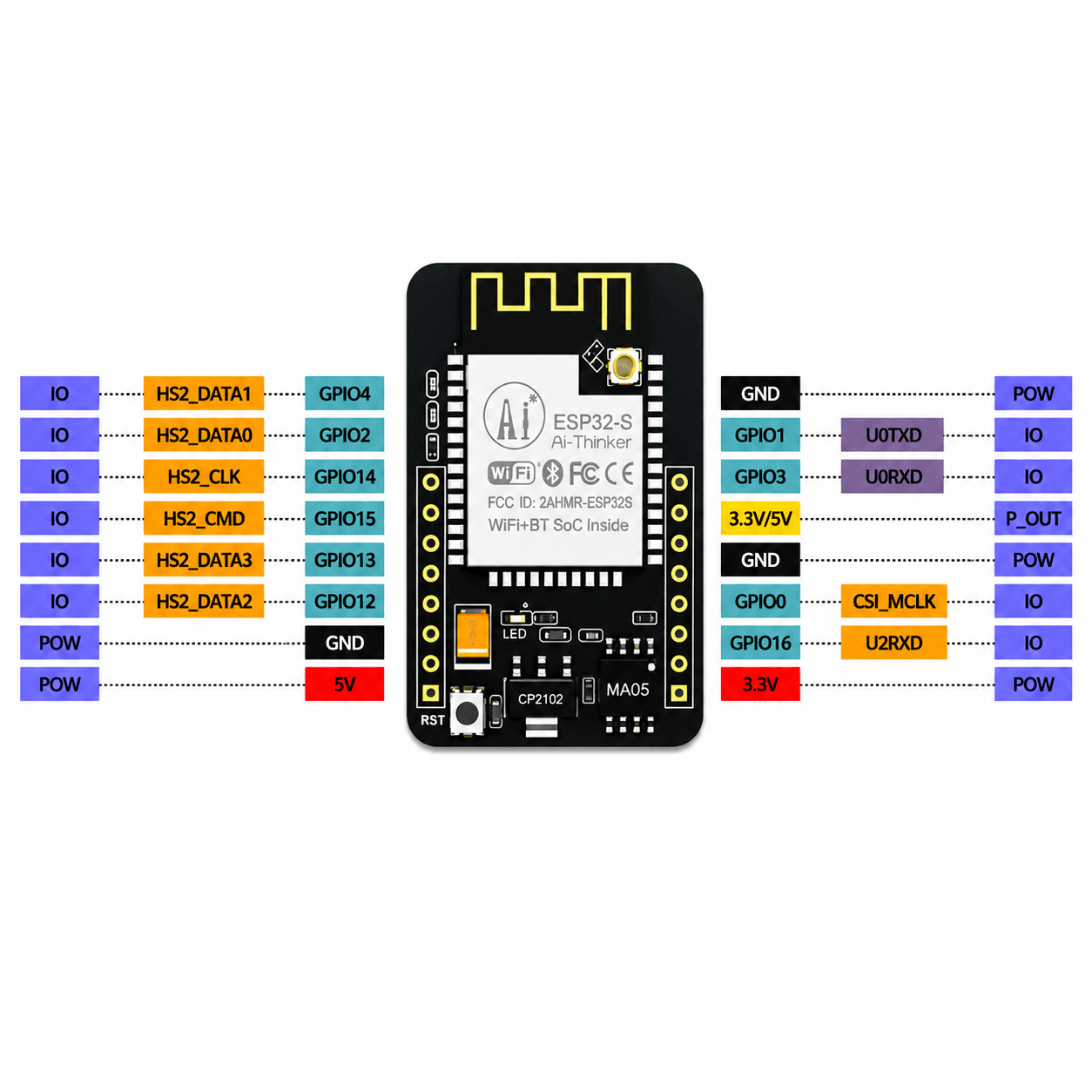

• GPIO Pins: Multiple GPIO available
• Onboard Flash LED: Yes
• Antenna: PCB Antenna (IPEX connector available on some versions)
• Programming Interface: UART (External USB-to-Serial adapter required)

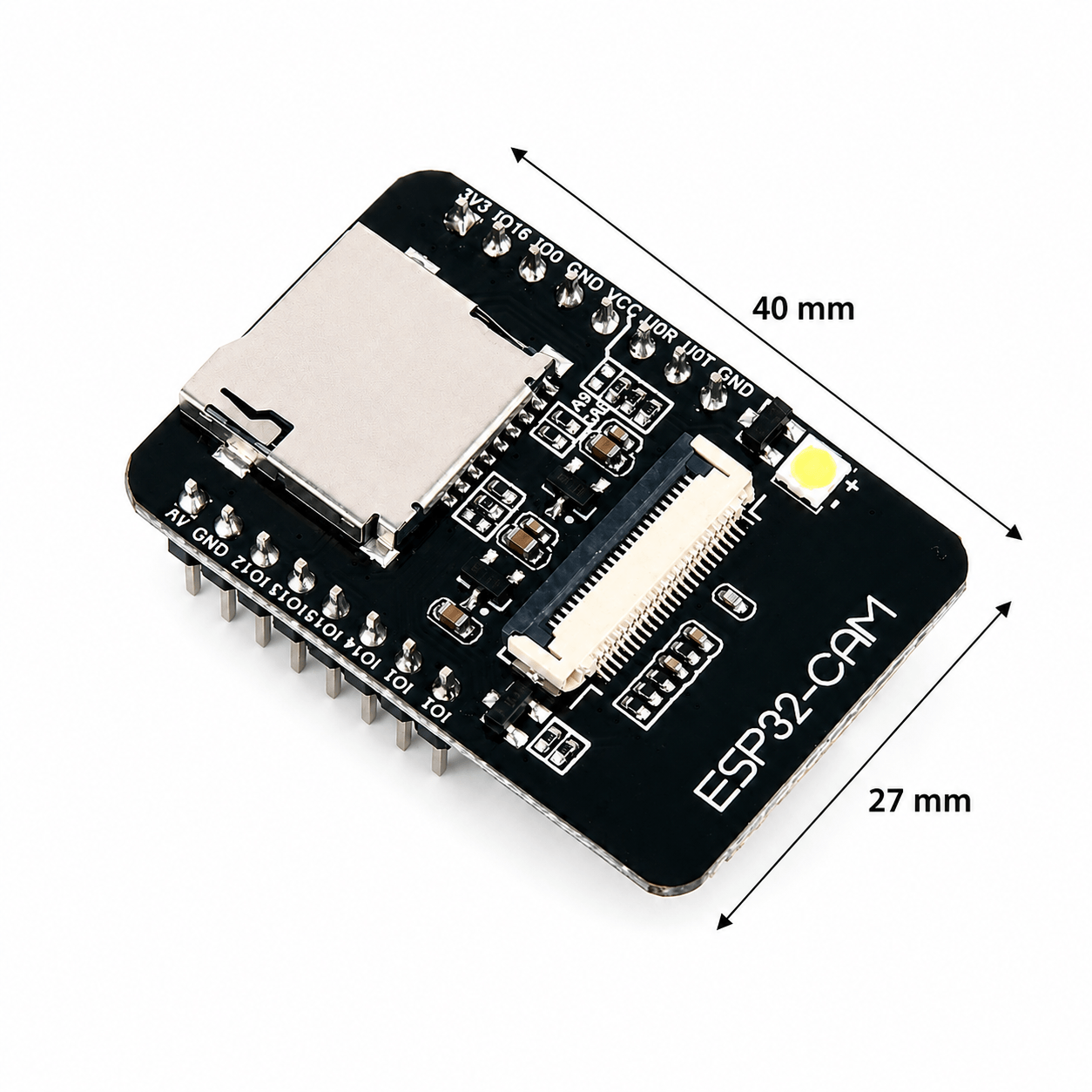

• Board Dimensions: 40 × 27 mm

Package Includes

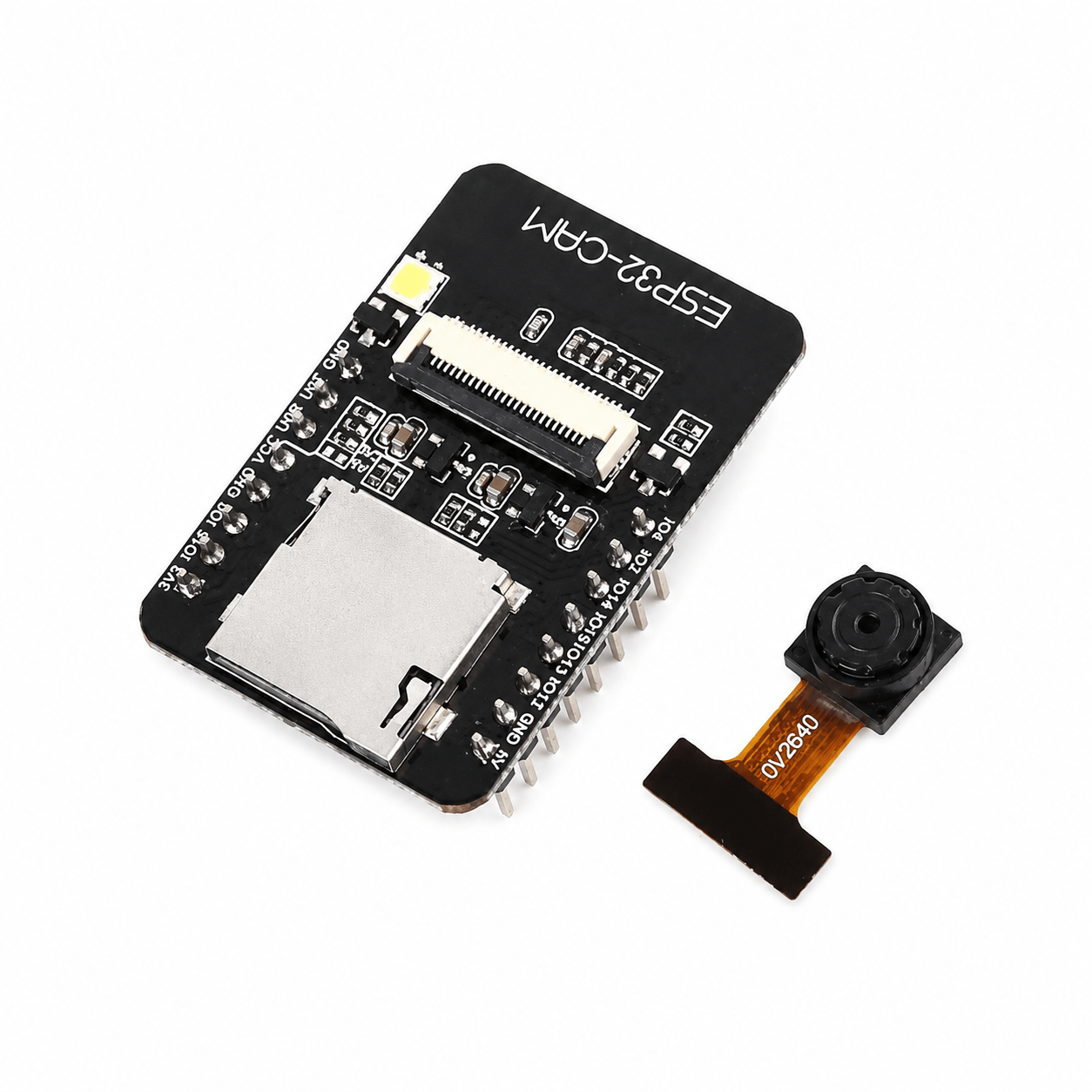

• 1 × ESP32-CAM WiFi + Bluetooth Development Board
• 1 × OV2640 2MP Camera Module
