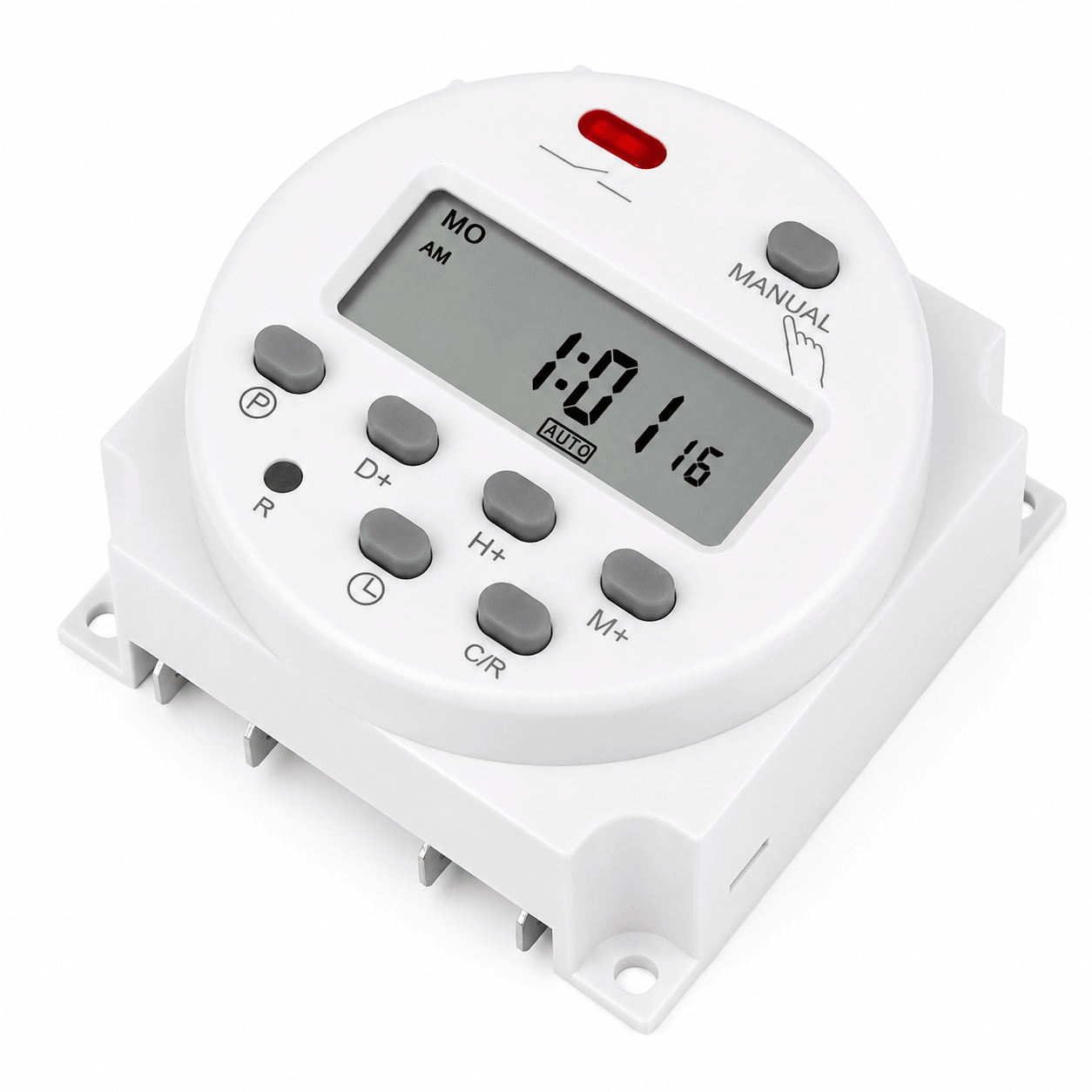

CN101A 12V Digital Programmable Timer

CN101A 12V Digital Programmable Timer

The CN101A 12V Digital Programmable Timer is a versatile time-control switch designed for automated operation of electrical devices. Featuring an LCD display, weekly programming, and up to 17 ON/OFF settings, it allows precise scheduling of lights, pumps, fans, battery chargers, and other appliances. With a built-in rechargeable battery backup and 16A load capacity, it ensures reliable operation even during power interruptions.

Specifications :

• Model: CN101A
• Supply Voltage: 12V AC/DC

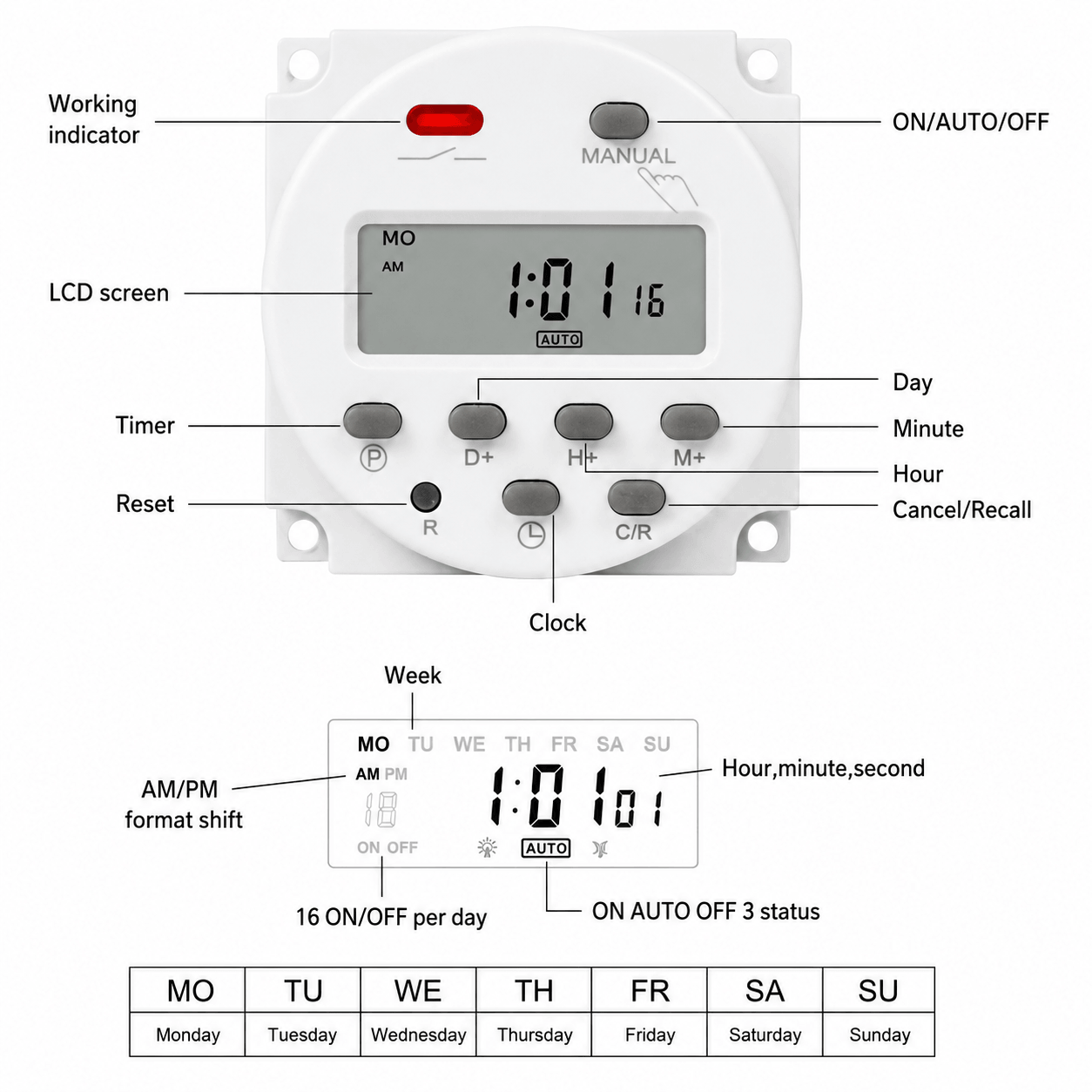

• Display Type: LCD Screen
• Programming Cycles: 17 ON/OFF Programs
• Minimum Setting Time: 1 Minute
• Maximum Timing Range: 168 Hours (1 Week)
• Load Capacity: 16A / 250VAC
  Battery Backup: Built-in Rechargeable Lithium Battery
• Time Accuracy: ≤1 Second/Day
• Installation Type: Panel Mount
• Operating Temperature: -10°C to +40°C
• Dimensions: 60mm × 60mm × 32mm

Package Includes

• 1 × CN101A 12V Digital Programmable Timer Module
• 1 × User Manual
