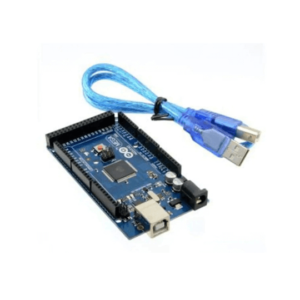

Arduino Mega Board with USB Cable

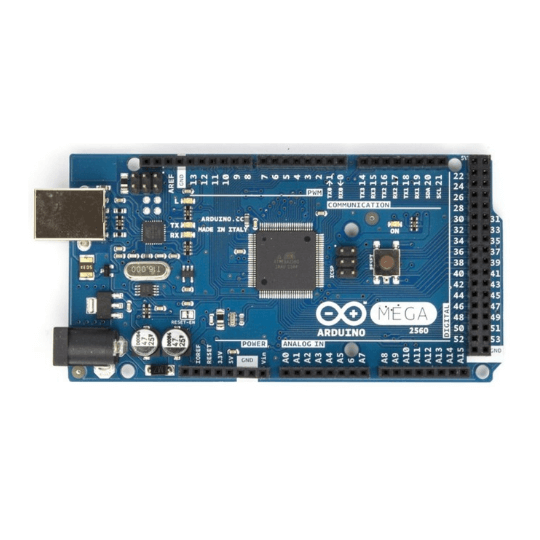

Arduino Mega Board with USB Cable

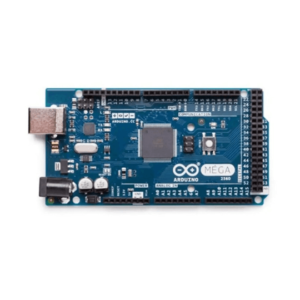

The Arduino Mega 2560 is a high-performance microcontroller board based on the ATmega2560 chipset, designed for demanding applications in robotics, IoT, and automation. With 54 digital I/O pins (15 PWM outputs), 16 analog inputs, 4 hardware UARTs, and a 16 MHz crystal oscillator, it offers extensive connectivity for sensors, actuators, and communication modules. Its increased memory capacity (256 KB Flash, 8 KB SRAM, 4 KB EEPROM) allows for complex program execution, while the onboard USB interface ensures seamless programming and serial communication. Compatible with the Arduino IDE, it supports a wide range of libraries and shields, making it a versatile choice for developers and hobbyists alike.

Specifications

•  Microcontroller: ATmega2560
• Clock Speed: 16 MHz
• Flash Memory: 256 KB (8 KB used by bootloader)
• SRAM: 8 KB
• EEPROM: 4 KB

Input/Output (I/O):

• Digital I/O Pins: 54 (15 PWM outputs)
• Analog Input Pins: 16 (10-bit resolution)
• PWM Output Pins: 15
• UART (Hardware Serial Ports): 4
• External Interrupts: Available on several pins

Power & Voltage:

• Operating Voltage: 5V
• Input Voltage (recommended): 7V – 12V
• DC Current per I/O Pin: 20 mA
• DC Current for 3.3V Pin: 50 mA

Connectivity & Communication:

• USB Interface: Yes (Type-B connector)
• I2C Interface: Yes
• SPI Interface: Yes
• CAN Bus: No
• Wi-Fi / Bluetooth: Not included (can be added via modules)

Physical & Other Features:

• Dimensions: 101.52 mm × 53.3 mm
• Weight: ~37g
• LED Indicators: Power, TX, RX, and Pin 13 LED
• Compatible with Arduino Shields: Yes
