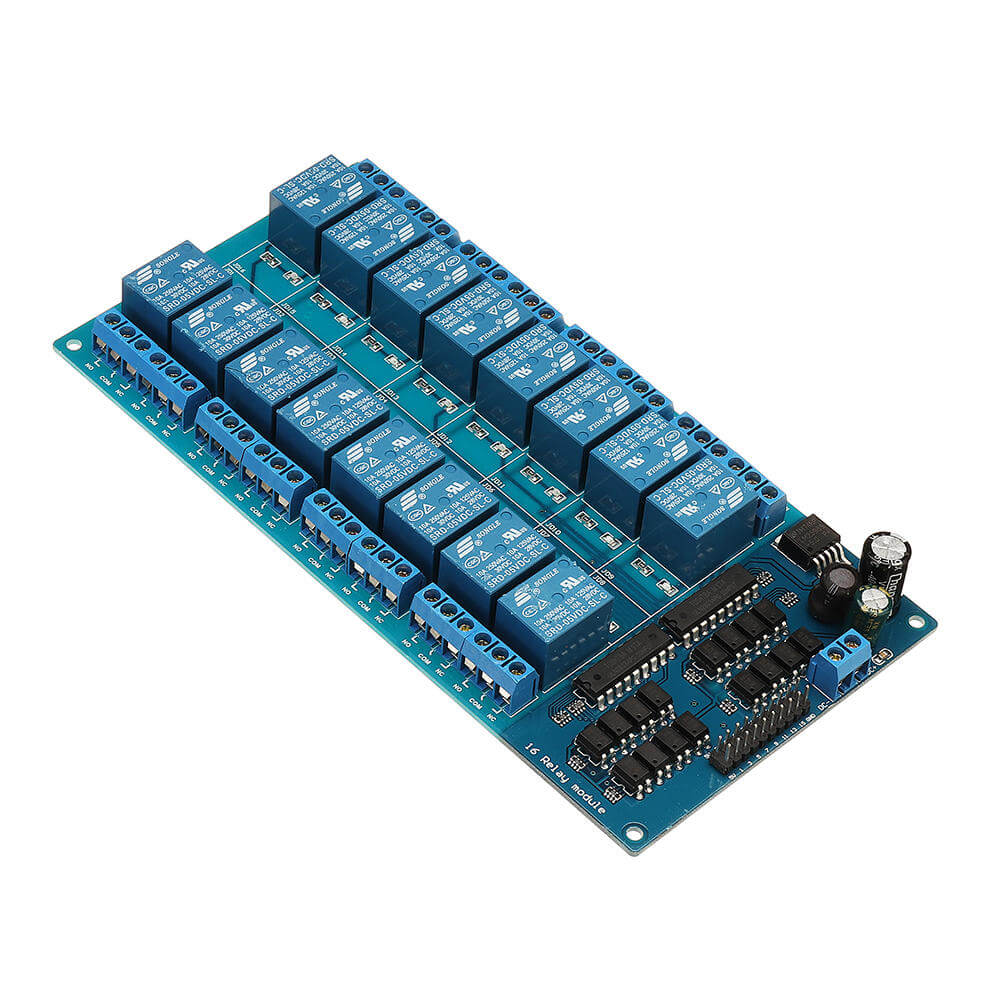

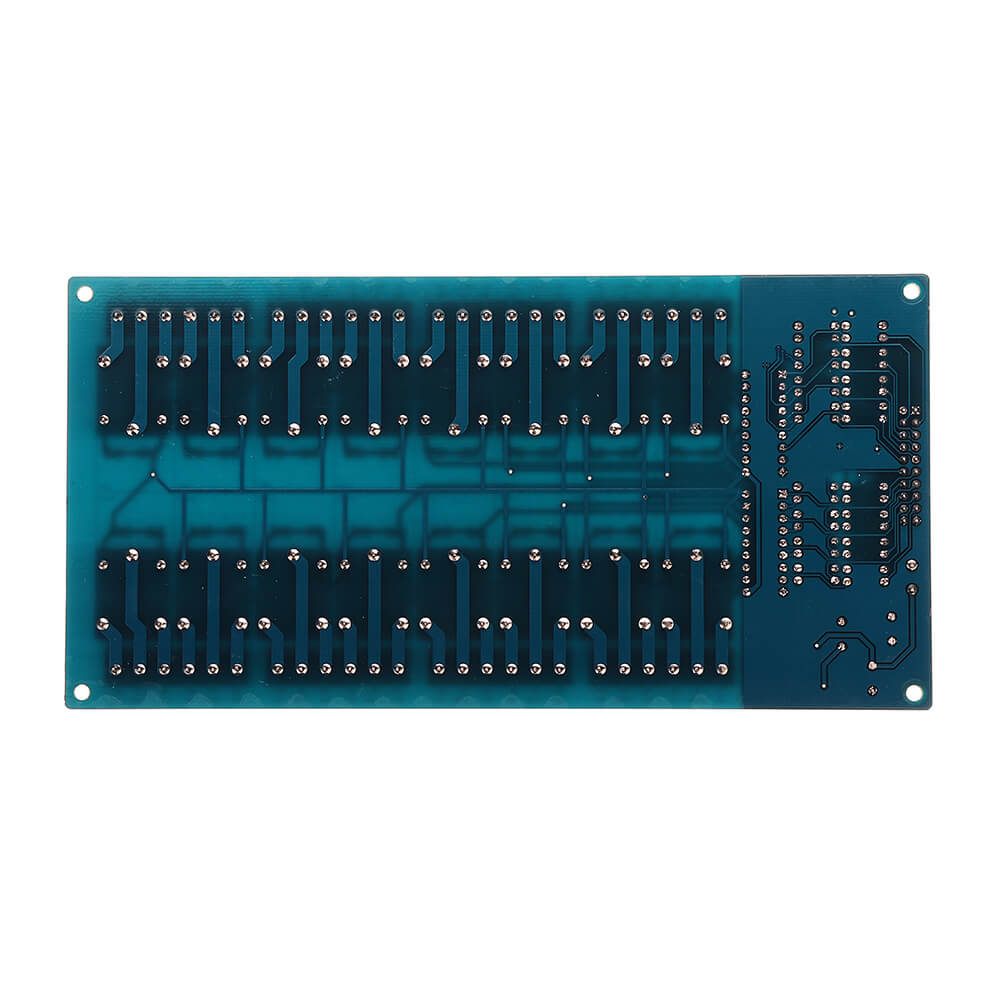

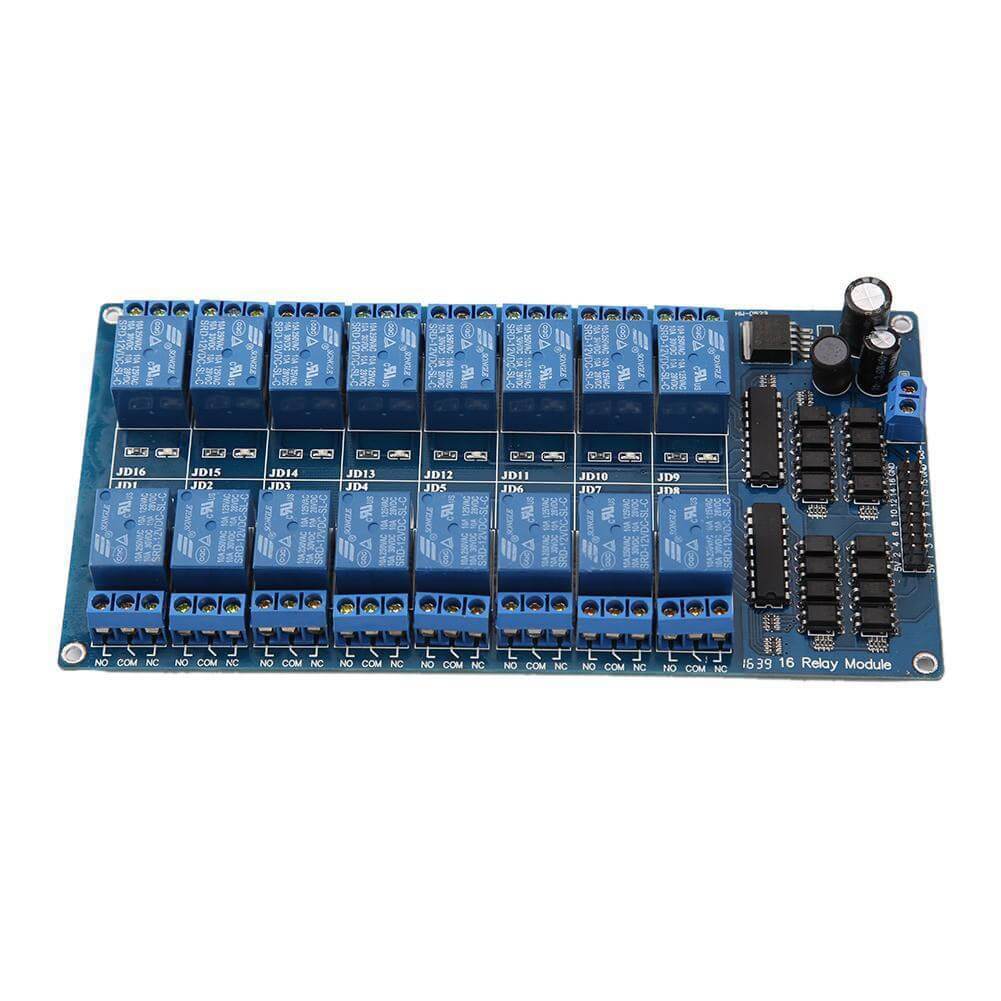

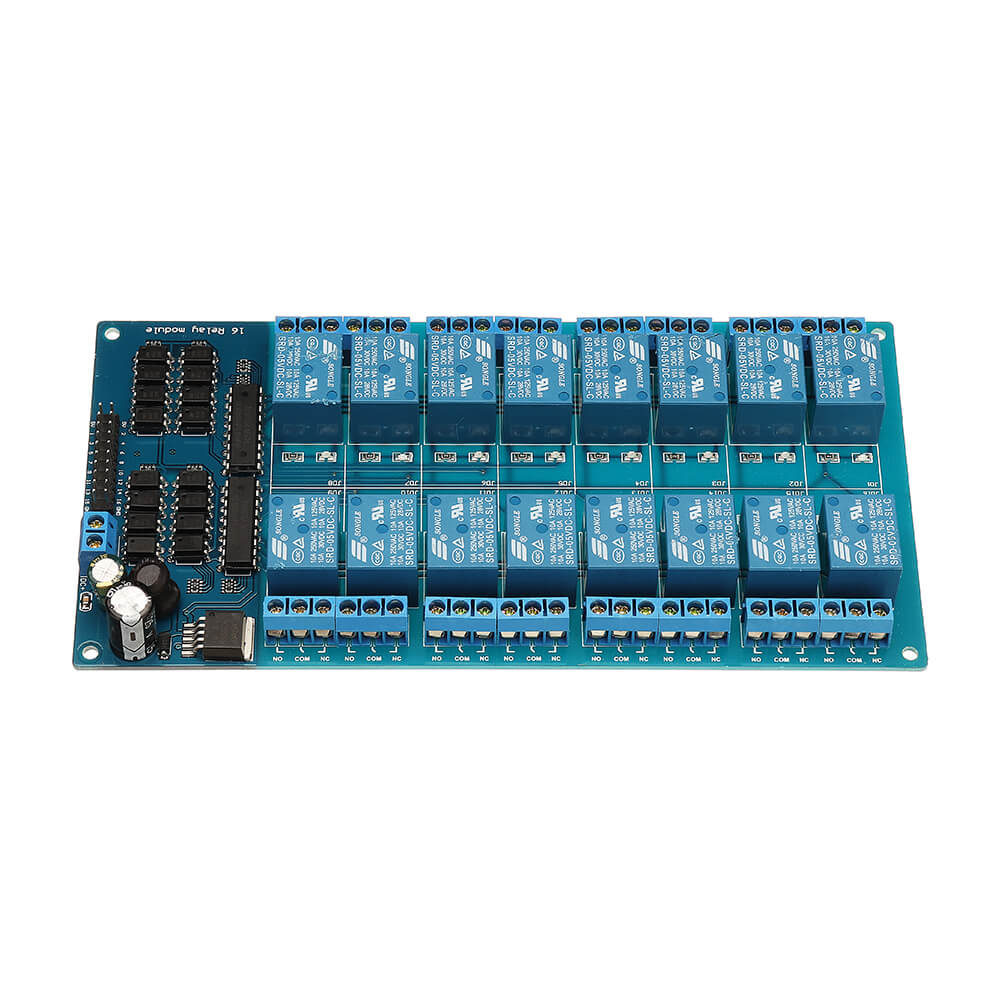

5V 16 Channel Relay Module

5V 16 Channel Relay Module

The 5V 16 Channel Relay Module is a reliable control board designed to switch multiple high-voltage or high-current devices using low-voltage microcontrollers such as Arduino, ESP32, Raspberry Pi, and PLC systems. It features 16 independent relay channels, optocoupler isolation, and LED status indicators for safe and efficient control of lights, motors, pumps, solenoids, and home automation systems.

Specifications :

• Model: 16-Channel Relay Module
• Operating Voltage: 5V DC
• Number of Channels: 16
• Trigger Voltage: 5V TTL Signal
• Relay Type: SPDT (Single Pole Double Throw)
• Contact Rating:
  10A @ 250V AC
  10A @ 125V AC
  10A @ 30V DC
  10A @ 28V DC
• Control Interface: Digital Input (IN1–IN16)
• Isolation: Optocoupler Isolation
• Status Indicators: LED Indicator for Each Relay Channel
• Output Terminals: NO (Normally Open), COM (Common), NC (Normally Closed)
• Compatible Boards: Arduino, ESP32, ESP8266, Raspberry Pi, PIC, AVR, ARM, PLC
• Mounting: PCB Mounting Holes Provided
• Applications: Home Automation, Industrial Control, Smart Switching, Robotics, IoT Projects

Package Includes:

• 1 × 5V 16 Channel Relay Module
